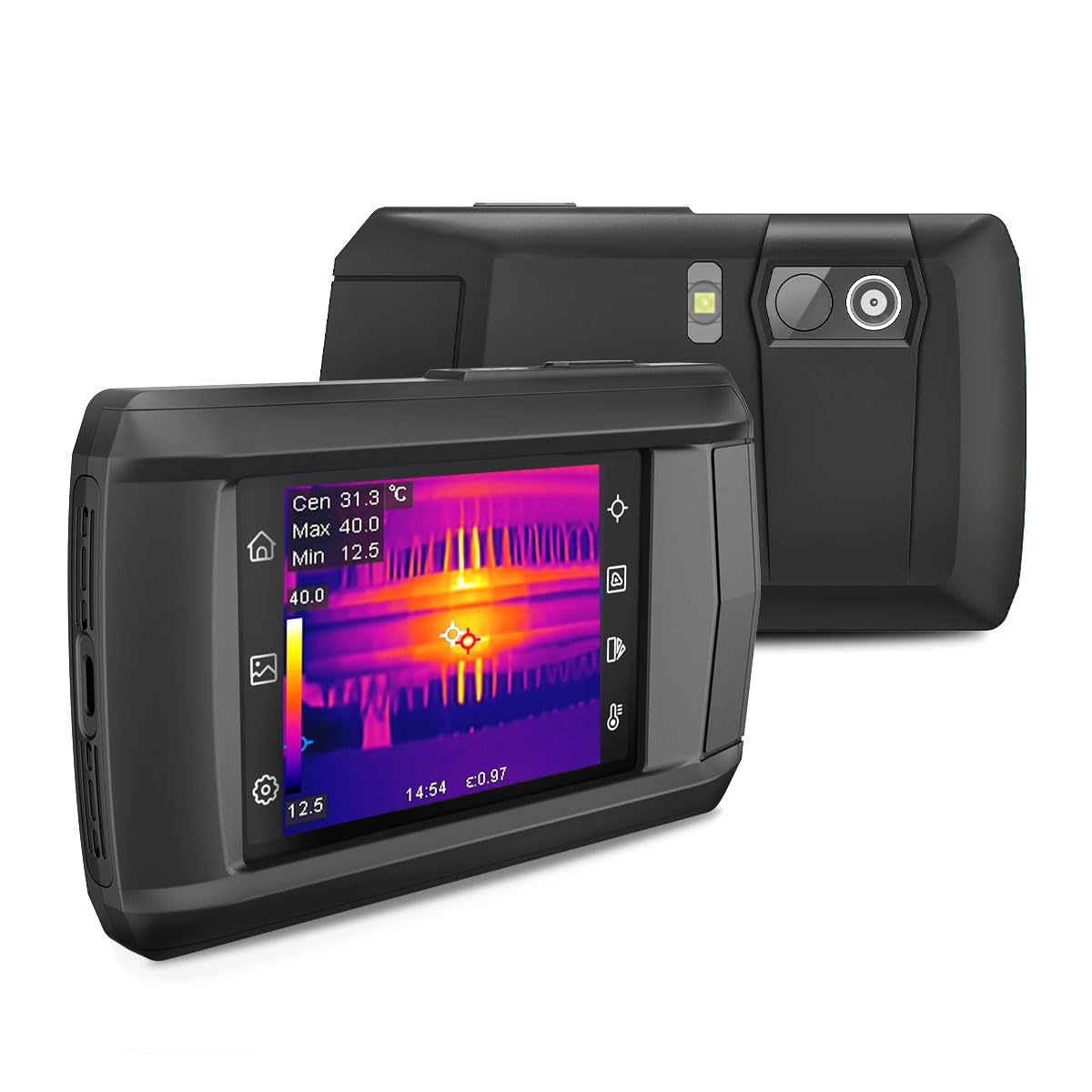

HP96 Thermal Imaging Camera - 240x240 Super Resolution IR Camera with 96x96 IR Sensor, 3.5" Touchscreen, 25Hz Refresh Rate (-4°F to 662°F Range) | Professional Thermal Imaging for Home Inspection, Electrical Maintenance & HVAC Diagnosis

Fulfill Your Video Recording Needs Built-in 4GB eMMC flash memory and microphones can store approximately 30,000 standard thermal images and 20 hours of recording videos with audio. 5 Image Modes, 8 Color Plattes For better image clarity: Inspecting distance: Recommended within 6.56 feetInspecting Time: Early morning or night that with significant temperature difference.Color Palettes: Flexibly choose appropriate palette based on the scene being observedlike gray for focusing on details, rainbow for high contrast, and iron for general use.. Accurate temperature reading For Better Readings Accuracy: The HP96 is equipped with emissivity parameters for common objects. (e.g. metal, ceramic, cement, etc.)Select the the emissivity according to the material to be measured before the inspection, and adjust an approximate temperature range to ensure more accurate temperature measurements.For better readings accuracy, it is recommended to keep regular-sized targets within 6.56 feet (2 meters) of the thermal camera. If the target is larger, you can increase the distance to achieve a wider angle of view. Easy to Transfer Data Equipped with a USB C to USB A cable. Note 1 : Please contact HSFTOOLS if you need USB C to USB C cable. Note 2 : To transfer data, you need to turn off the cast screen function first. Standard Tripod Hole Designed with a ¼"-20 standard tripod hole, it's supported to combine with a tripod to assist inspection works. Flexible Temperature Range Adjust the Maximum or Minimum Temperature to highlight the specific temperature range you want to focus on. Reliable go-to Tools at any Job sites The HP96 has undergone a 2-meter drop test and has an IP54 protection rating, ensuring confidence and reliability in various work scenarios and even in harsh environments. FAQ Q1: Can a thermal imager see through walls? Thermal imagers create images by capturing the thermal radiation on the surface of objects, and it is unable to see through walls unless there is a sufficient temperature difference behind them. Q2: How does a thermal imager detect water leaks? Step 1. Selection of Testing Time: It is recommended to test the building after it has been subjected to thermal loads (e.g., after sunlight exposure on a hot, dry, sunny day) because the temperature difference between the leaking area and the normal area will be more pronounced at this time. Step 2. Perform a Water Pressure Test: Use a water pressure gauge to check the water pressure at each faucet and fixture. Utilize a pressurizing device to determine if the water line is maintaining proper pressure. If there is a drop in water pressure, it can help determine if the cold or hot water line is leaking. Step 3. Using Thermal Imager: If the leak is in the hot water line, let the hot water run for 15-30 minutes until the temperature of the water line is visible on the thermal imaging device. Check the location of the leak along the hot water line. If the leak is in the cold water line, pour hot water into the cold water line and wait 15-30 minutes to observe. Q3: Why does the thermal imager occasionally calibrate itself? Thermal imaging cameras are automatically calibrated to changes in ambient temperature to counteract the effect of changes on the accuracy of the detector. This process usually occurs when the camera is moving quickly or when it is first switched on, the screen will stutter and display ‘calibrating’ and there may be a ‘clicking’ sound from within the instrument. FAQ Q1: Can a thermal imager see through walls? Thermal imagers create images by capturing the thermal radiation on the surface of objects, and it is unable to see through walls unless there is a sufficient temperature difference behind them. Q2: How does a thermal imager detect water leaks? Step 1. Selection of Testing Time: It is recommended to test the building after it has been subjected to thermal loads (e.g., after sunlight exposure on a hot, dry, sunny day) because the temperature difference between the leaking area and the normal area will be more pronounced at this time. Step 2. Perform a Water Pressure Test: Use a water pressure gauge to check the water pressure at each faucet and fixture. Utilize a pressurizing device to determine if the water line is maintaining proper pressure. If there is a drop in water pressure, it can help determine if the cold or hot water line is leaking. Step 3. Using Thermal Imager: If the leak is in the hot water line, let the hot water run for 15-30 minutes until the temperature of the water line is visible on the thermal imaging device. Check the location of the leak along the hot water line. If the leak is in the cold water line, pour hot water into the cold water line and wait 15-30 minutes to observe. Q3: Why does the thermal imager occasionally calibrate itself? Thermal imaging cameras are automatically calibrated to changes in ambient temperature to counteract the effect of changes on the accuracy of the detector. This process usually occurs when the camera is moving quickly or when it is first switched on, the screen will stutter and display ‘calibrating’ and there may be a ‘clicking’ sound from within the instrument.

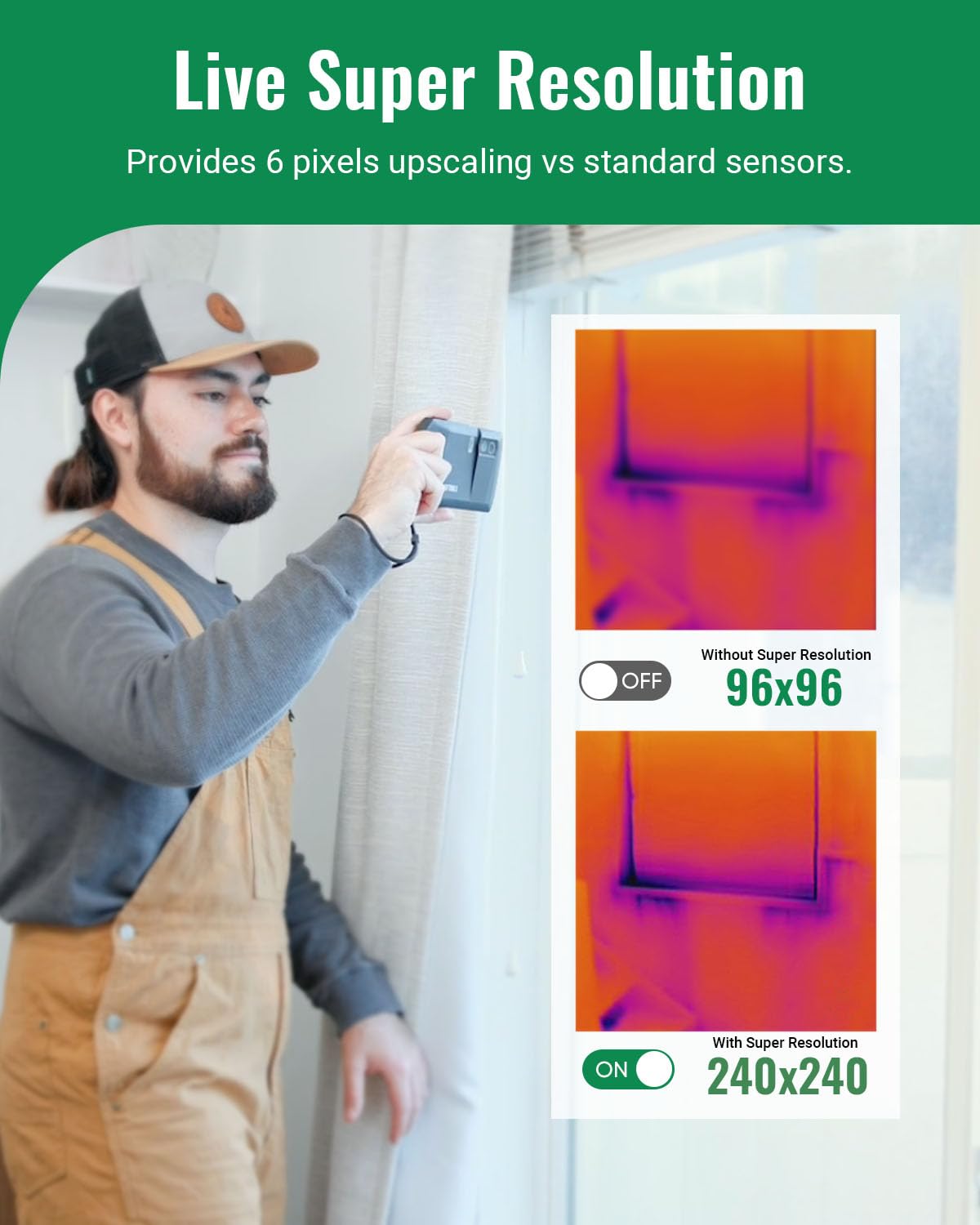

【Live Super Resolution】The HP96 Thermal Imager incorporates an upgraded Live Super Resolution algorithm, by enabling live super resolution technology during inspections, the thermal image clarity enhances from base 96x96 to 240x240 in real-time viewing and photo capturing.Thermal sensitivity below 50mk provides you with high-definition details, and the 25Hz high frame rate ensures a smooth screen browsing experience during anomaly checking.

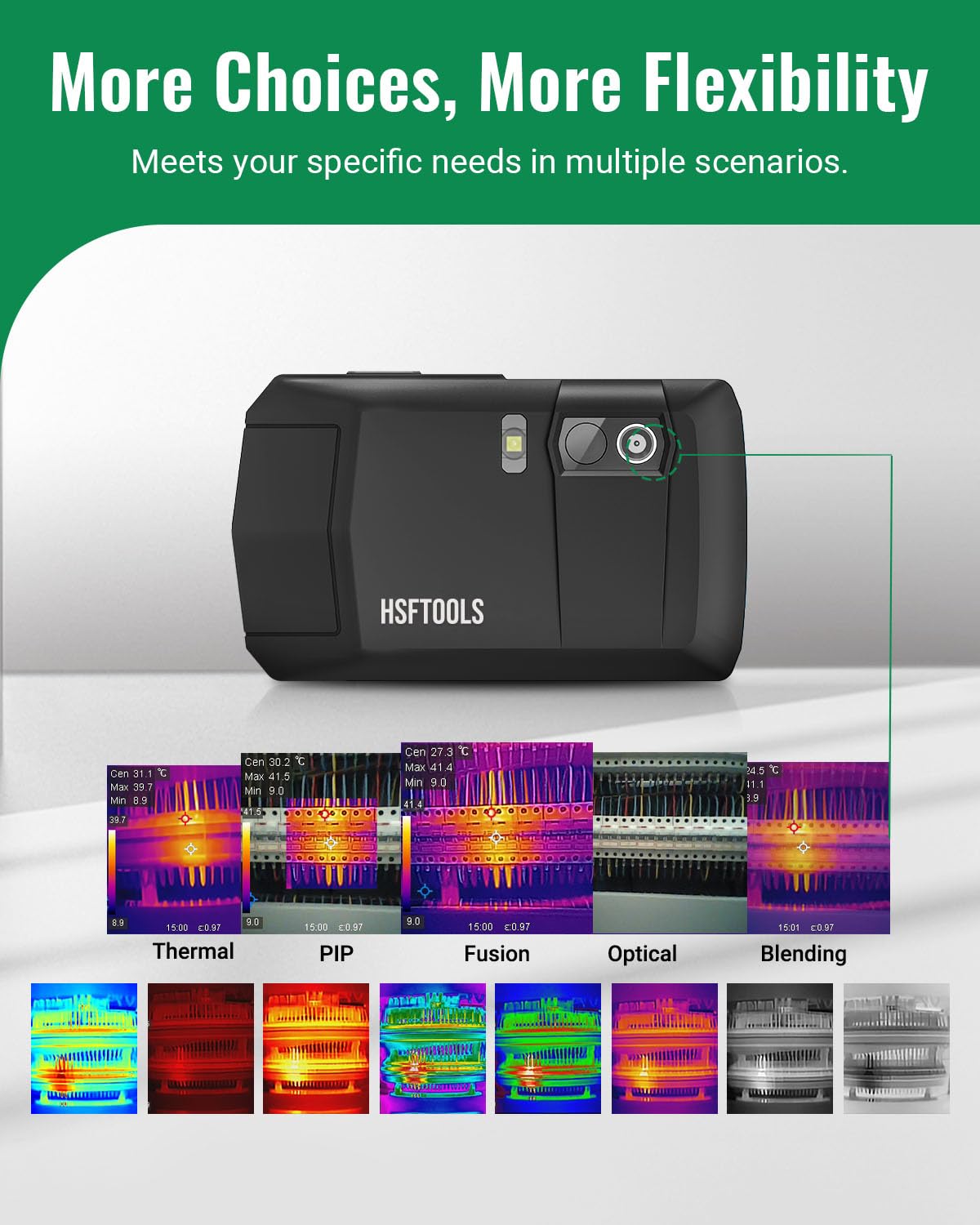

【Dual Cameras】Built-in 96x96 IR camera and 640x480 visible camera, the HP96 Infrared thermal camera offers 5 image modes for enhancing details and scene image contrast, helping locate anomalies more effectively. (Thermal/Visual/Fusion/PIP/Blending). 8 selected color palettes allow you to flexibly choose the most appropriate color palette for different detection scenarios and purposes.

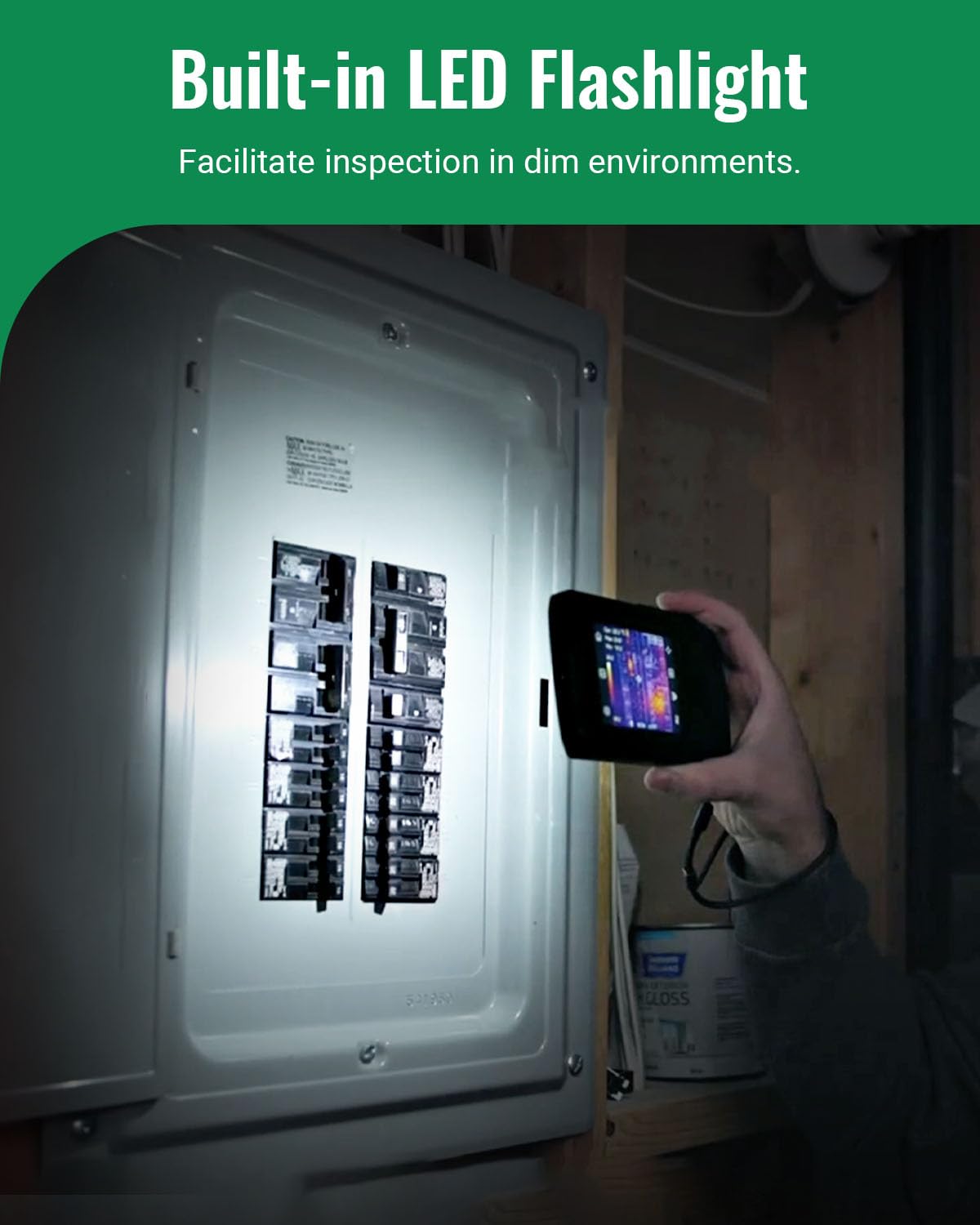

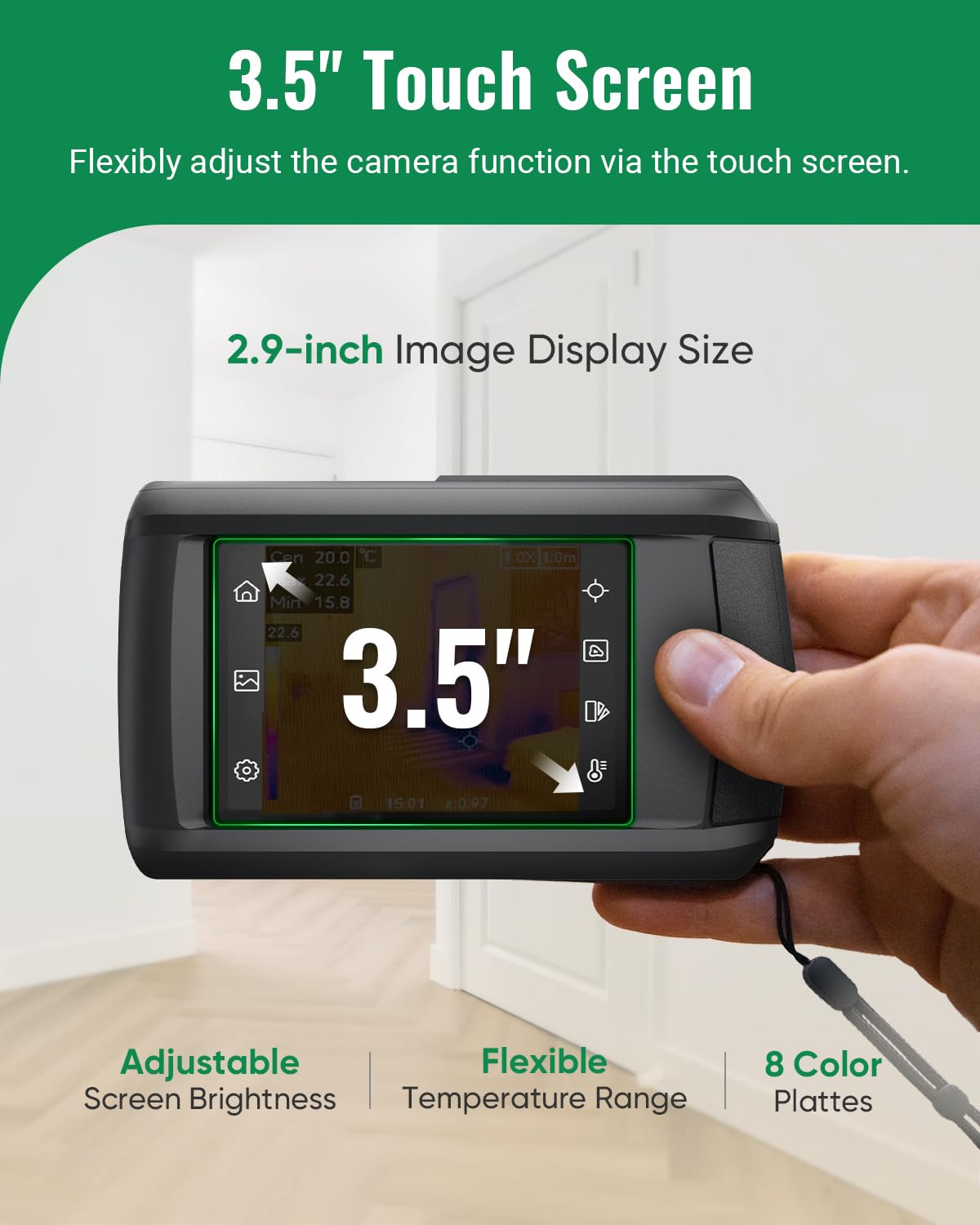

【Easy to Operate】（1） 3.5" touchscreen with an intuitive phone-type UI design is simple to operate. You can easily adjust brightness/switch image mode and color plattes/ adjust temperature range by sliding or tap the screen (2) Built-in eMMC storage and microphones, supporting live video/ audio recording and playback. (3) Swipe down the screen-Turn on LED flashlight to help with low-light inspections (4) The lightweight and compact HP96 thermal image camera fits easily into any toolbox.

【Fast Anomaly Recognition】The HP96 infrared camera features a 50-degree field of view, providing broad coverage during scanning. It automatically tracks maximum, minimum, and center temperature spots, intuitively displaying real-time temperature readings. Additionally, you can set temperature exceedance alerts, either through flashlight alerts or sound alerts, to promptly identify anomalies and take action before any significant failures occur.

【Accurate Temperature Measurement】The HP96 thermographic camera adopts an advanced VOx detector, which enables it to detect temperature differentials as small as 0.05℃ and ensure that the temperature readings discrepancy is within ±2%. Additionally, the thermal imager allows users to change emissivity settings based on specific materials and adjust the distance to objects, ensuring more accurate temperature measurements on a variety of substances, including wood, bricks, and more.

【Durable and Sturdy】 (1) Built-in flash memory can store approximately 30,000 standard thermal images and 20 hours of recording videos. (2) Built-in rechargeable lithium-ion battery provides up to 4 hours of continuous operation. (3) The 6.6ft drop test and IP54 protection rating allow you to work with confidence in most different work scenarios and even harsh environments. (4) Designed with a standard tripod hole, it's supported to combine with a tripod to assist inspection works.
